VB 3.5" and 3" Floating Floor Socket with High Strength Brass Floor Plate

VB 3.5" and 3" Floating Floor Socket with High Strength Brass Floor Plate

Adding to cart… The item has been added

Cover Plate:

  • Premium quality, 8" Outside Diameter with 6" Inside Diameter opening with a 1/4" thickness made of solid cast brass.
  • Hinged floor plate is machined for a high quality fit and finish.
  • 1" Wide Hinge for long term strength and durability. (Don't skimp on sleeve quality or you'll find yourself replacing these in a few years) (Many of our competitor's access plates have narrower hinges which break over time and is a common reason people call us for replacement as they break off and get kicked around the gym floor getting lost, leaving potentially hazardous holes in the gym floor).
  • Industry leading inside diameter allows floating wooden floors to expand and contract with changes in humidity.  (It is not uncommon for some wood floors to move 1-2 inches throughout the day pinning the floor into the volleyball pole.  This larger 6" opening reduces the potential for that issue to occur).
  • Requires routing of wood to retrofit into existing facilities

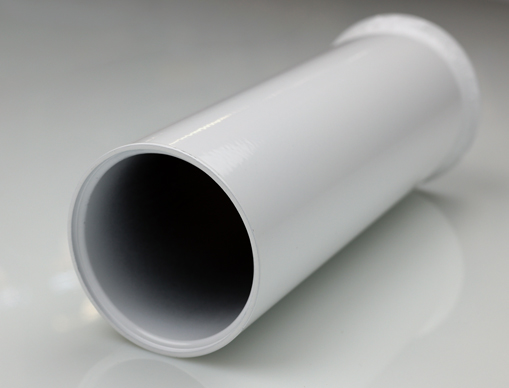

Volleyball pole/standard mounting sleeve cemented below the cover plate:

  • 12" deep
  • Seamless anodized aluminum with a powder coated finish for two layers of rust protection.
  • Requires sub-floor excavation
  • 3-1/2" Sleeves will accept 3-1/2" poles and 3" poles. 3" Sleeves will accept 3" poles only
  • Requires two per system
  • Note: Floors with basements or hollow cavities below require additional re-enforcement. Please call us for site specific install help.
  • Detailed installation instructions provided at no cost.
  • Sold Individually


Installation Instructions

Floating Floor Socket Spec Sheet

What Sets The VBUSA Floating Floor Socket Apart?

sleeve 1

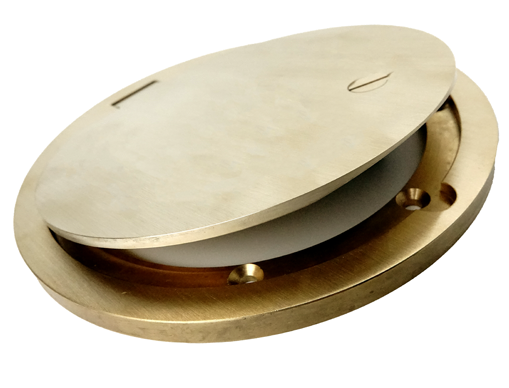

The floating brass floor plate is ingeniously designed with a spacious opening, allowing for easy access to the socket beneath the wood floor, regardless of any movement or shifting of the floor.

This thoughtful feature ensures convenience and practicality for users, facilitating hassle-free use of the socket without the need for constant readjustment or searching.

sleeve 2


The larger hinge on our 8-inch diameter brass plate enhances its durability and reduces the risk of breakage, especially when subjected to external force such as kicking.

In comparison, plates with smaller hinges are more prone to breaking over time.

sleeve 3

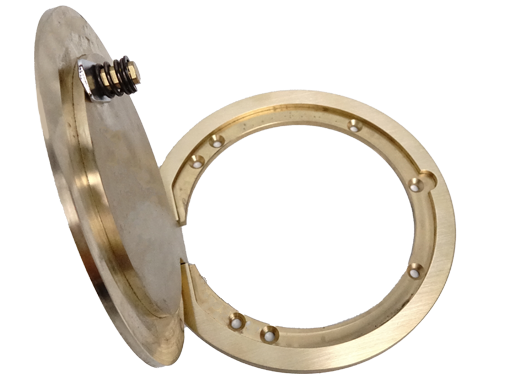

The lockable option on our floating brass floor plate provides a convenient and secure way to lock it in place. Simply use a key, coin, or a flat head screwdriver to rotate the small lock and ensure that the plate cannot be moved or tampered with.
